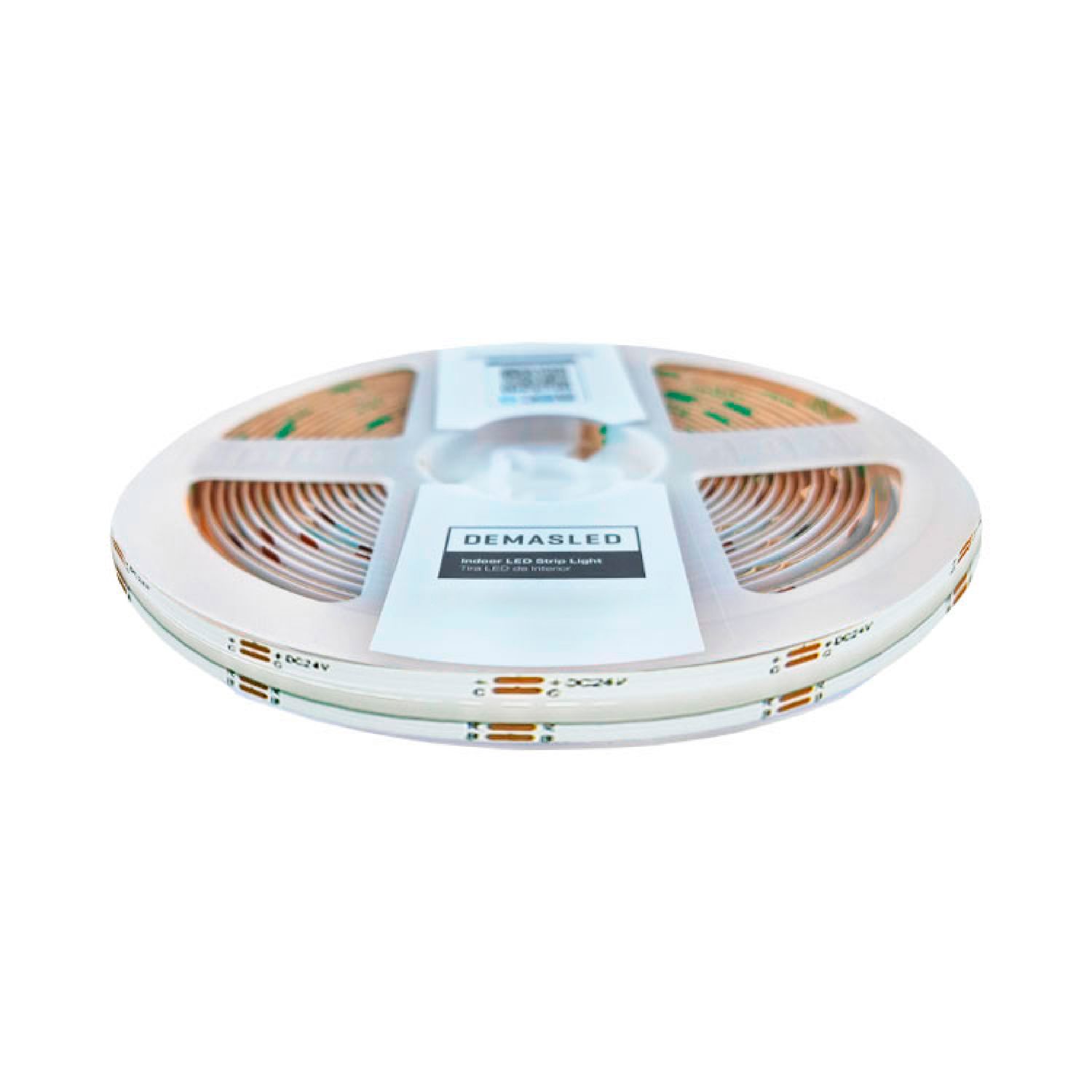

10mm COB LED Strip RGB 24V 14W/m 500lm/m 576LED/m 16.4ft

10mm RGB COB LED Strip Light 24V 14W/m (5m/16.4ft) | Dual-End Cable Connection

Experience seamless, dot-free linear lighting with the 24V RGB COB LED Strip Light. Engineered with advanced chip-on-board technology, it delivers uniform color, premium flexibility, and brilliant brightness to elevate ceilings, coves, commercial spaces, and living rooms. Now upgraded with a dual-end cable connection design, installation is faster, safer, and more efficient, allowing you to create dynamic, custom environments with minimal energy consumption.

• LED Technology: COB (Chip on Board) – Continuous, spotless linear illumination.

• Connection Type: Pre-wired with dual-end cables (both ends of the roll), ideal for efficient series connection and voltage drop reduction.

• Emitting Color: RGB (Multi-color).

• Operating Voltage: 24 VDC (Requires a constant voltage DC power supply).

• Power Consumption per Meter: 14 W/m (4.26 W/ft)

• Total Power Consumption (5m Roll): 70 W (Replaces traditional incandescent fixtures up to 630W).

• Luminous Flux per Meter: 500 lm/m

• Total Luminous Flux: 2,500 lm

• LED Density: 576 COB chips per meter (2,880 chips per 5-meter roll).

• Color Rendering Index (CRI): >90 Ra (High fidelity color accuracy).

• Beam Angle: 120°

• PCB Width: 10 mm

• Roll Length: 5 meters / 16.4 feet

• Cutting Interval: Cuttable every 24 LEDs (every 3.12 cm / 1.23 in) along the marked lines.

• Backing: 3M “Peel-And-Stick” self-adhesive tape on the back.

• Lifespan: Up to 35,000 hours.

 Requires a 24VDC Power Supply (The power supply wattage must be equal to or greater than the total consumption of the strip; never use an underpowered power supply).

 Requires an RGB Controller to manage colors, brightness, and dynamic modes.

 Technical Note: To dim the light intensity or amplify the signal over long runs, the use of signal amplifiers is required.

Intended for indoor use (outdoor applications require proper weatherproofing enclosures). DO NOT expose this strip to direct sunlight due to UV damage. DO NOT bend the strip to a radius tighter than 15 mm (0.59”) or bend it horizontally; doing so will damage the internal circuitry and VOID THE WARRANTY.
