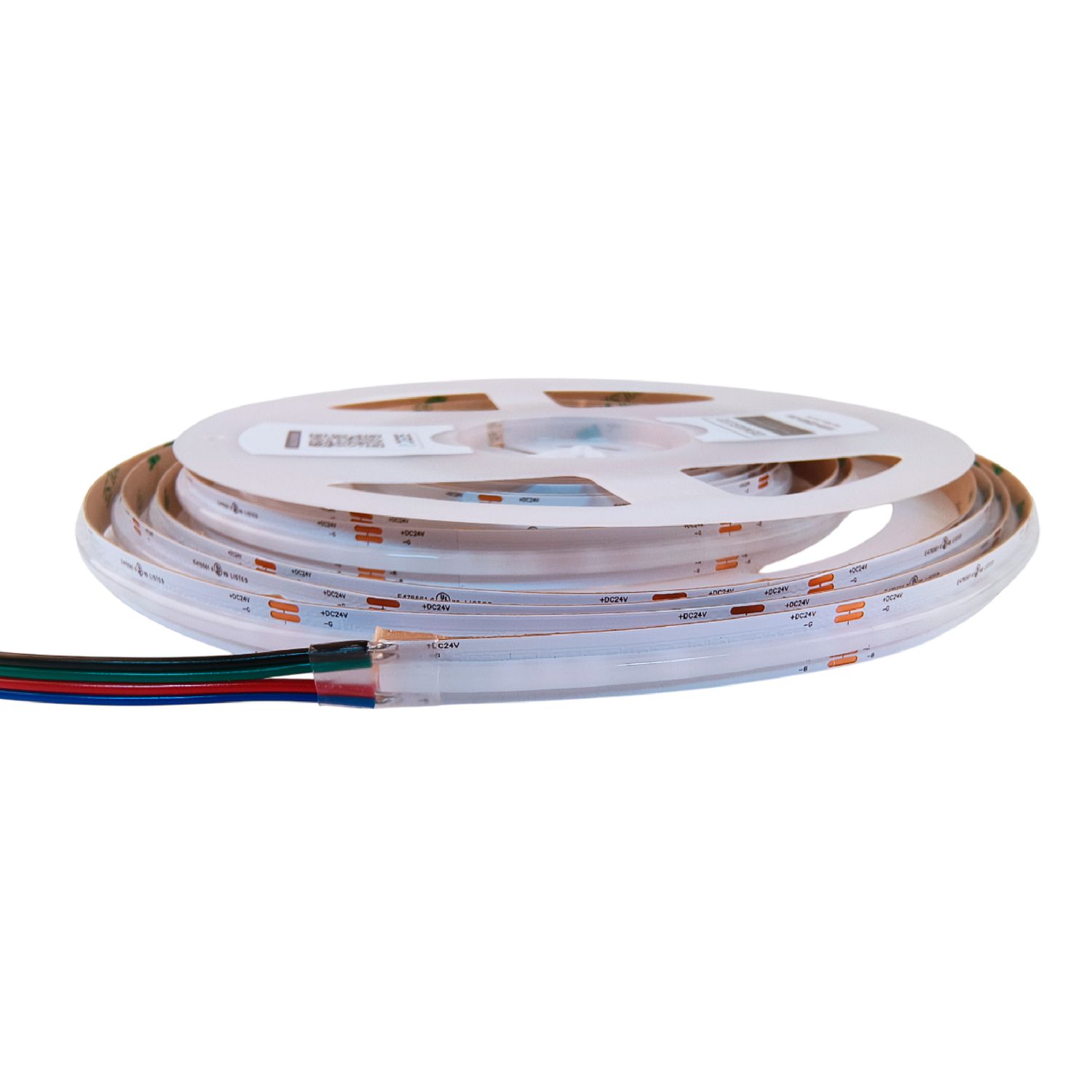

12mm COB LED Strip RGB+CCT 24V 25W/m 80lm/m 840LED/m 16.4ft

24V 25W/m RGB+CCT COB LED Strip x5m

COB chips typically have 9 or more diodes and only one circuit and two contacts, regardless of the diode count. This design is the reason for the panel or tube appearance of a COB LED light; on the other hand, an SMD light appears as a series of smaller, dot-like lights. Some COB chips are also known for producing high lumens (brightness) with less power, a wide viewing angle, and other excellent related characteristics that make COBs widely used.

COB technology offers higher levels of light dispersion, eliminating those dark-then-bright patches created by narrow-beam fixtures. Additionally, COBs have greater reliability and a longer lifespan than SMD LEDs. They come with 3M adhesive tape on the back, high color efficiency, and uniform illumination. A COB LED achieves higher brightness with a more uniform appearance than its predecessors.

Interesting Facts:

New Technology: The yellow layer in the middle of the COB chip is a single phosphor layer, allowing for complete control of color temperatures and CRI. This type of LED technology allows the chip density of our strip to reach up to 840 chips per meter, promising much greater flexibility and improved brightness compared to other LED technologies.

High Luminous Flux: Our dynamic color RGB+CCT COB strip delivers 80 lm/w, plus a CRI of >90 Ra, making it perfect for ceilings, walls, stairs, interior lighting, and more!

Low Energy Consumption: At only 25W per meter, it's ideal for replacing any 630W incandescent light fixture, whether it's traditional tubes or bulbs. For smaller projects, just one meter of our 25W/m COB strip can replace any traditional 126W light fixture.

Multiple Applications: Due to its greater flexibility and higher brightness, this COB strip is perfect for indoor lighting, home and commercial lighting, ceilings, walls, clubs, bars, lounges, living rooms, conference rooms, task lighting, showrooms, displays, shelves, cabinets, wardrobes, or outdoors after proper installation has been completed to protect the COB strip.

Adhesive Backing and Flexibility: With a 3M self-adhesive "Peel-and-Stick" tape, the flexibility of the strip allows you to install your COB strip on any smooth, clean surface. Refer to the manual or data sheet for connection diagrams; if unsure, professional installation is recommended.

Adjustable: The light strip is manufactured to be cut to any desired length up to 5 m (16 ft) without losing functionality. It can be cut into 24-LED segments (every 4.54 cm) at the marked sections and assembled with simple soldering, or you can use our connectors for easy installation.

Tips before buying:

 When comparing COB strip lighting between companies, if both competing strips use the same chips, look at the number of LEDs on the strip and look at the lumen output (luminous flux) to determine the brightness.

 When looking for bright COB strip lights, be sure to compare apples to apples; not all COB strips are created equal and with the same specifications.

 If you have any questions about which LED strips you need for your projects, please contact our FREE TECHNICAL SUPPORT TEAM.

Note:

■ This product should ONLY be used with a 24V DC power supply. The supply voltage must match the voltage required by the LED strip. Anything lower than this will result in a lower intensity of the strip. Anything higher than this may burn out the LED strip.

■ You can use a power supply with current and power (watts) equal to or greater than the total consumption of the LED strip, but not with values ​​less than the total consumption of the strip, as this would damage its operation.

■ If you wish to use dimmers to regulate the light intensity or controllers to select the color tone, the use of amplifiers is required. Please contact us so we can provide you with the best possible assistance for your project.

Precautions:

■ DO NOT expose this strip to sunlight due to UV damage.

■ DO NOT bend this LED strip less than 15mm / 0.59".

■ DO NOT bend it horizontally.

■ All of the above may damage the LED strip and VOID THE WARRANTY.

Technical Specifications
