24V 150W 6.25A LED Power Supply with Junction Box, 5-in-1 TRIAC/MLV/ELV Dimmable, IP54, UL

Power Supply Dry Damp Wet with junction box 24V 150W 6.25A 110-277V

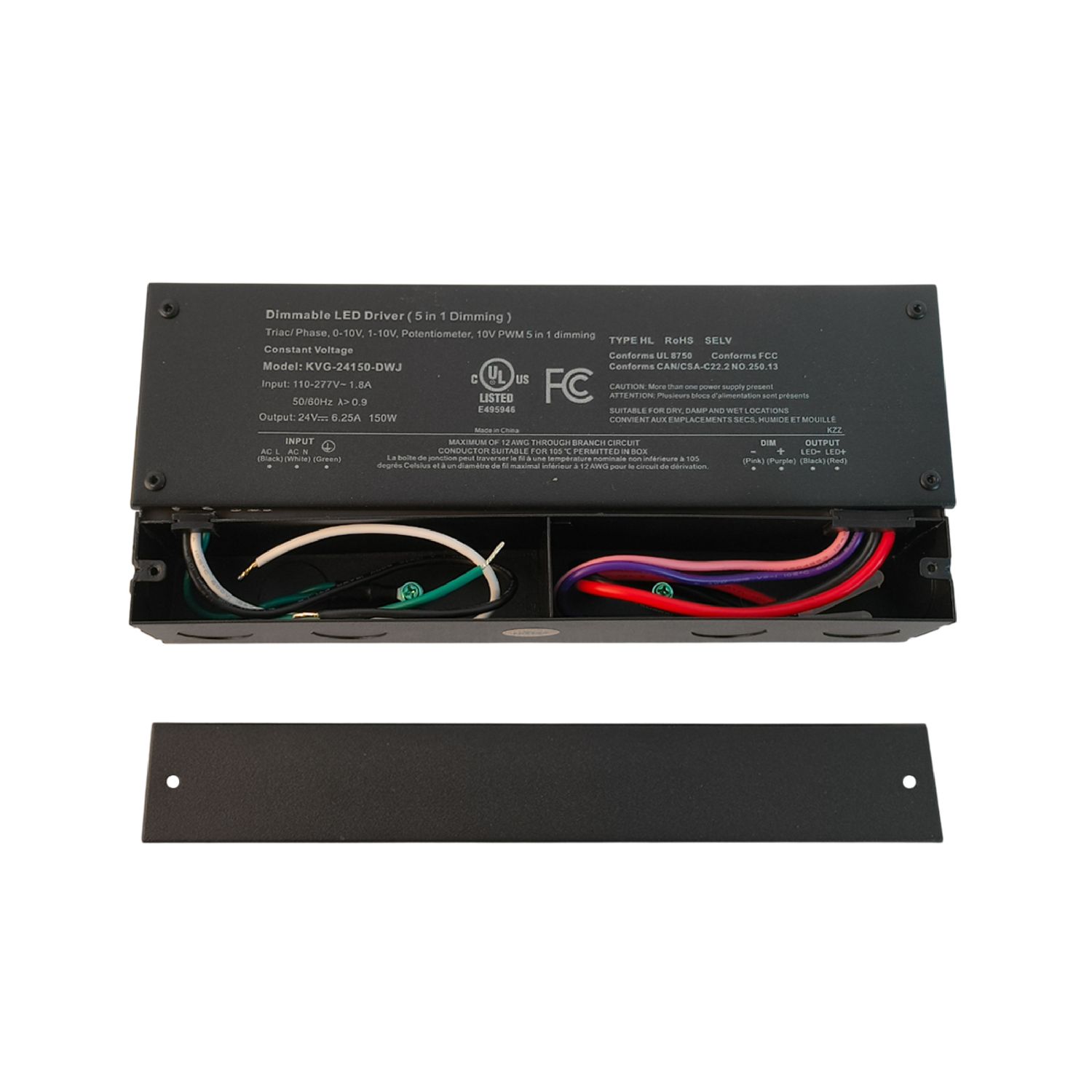

The fap-150-24v-5x1-box is a high-performance constant voltage driver designed for projects that demand versatility and safety. Thanks to its 5-in-1 dimming technology, it allows for total brightness control using the most common protocols on the market. Its metal housing with an integrated junction box simplifies installation and protects wire splices, eliminating the need for additional external boxes.

Key Features

• Universal Dimming Compatibility: Supports Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM for smooth, flicker-free dimming.

• Environment Ready: Rated for Dry, Damp, and Wet Locations, making it ideal for both luxury interiors and protected outdoor installations.

• Professional Safety: UL Listed and compliant with FCC and RoHS standards, featuring protection against short circuits, overloads, and overheating.

• Energy Efficiency: High power factor (> 0.9), ensuring optimal energy use and lower heat generation.

Technical Specifications

• Max Power: 150W

• Output Voltage: 24V DC

• Output Current: 6.25A

• Input Voltage: 110-277V~ 50/60 Hz

• Dimming: 5-in-1 (Triac, 0-10V, 1-10V, PWM, Resistance)

• Certifications: UL, FCC, RoHS

Recommended Applications

• Medium-power architectural LED lighting.

• Light coves and under-cabinet lighting in high-end residential projects.

• LED signs and displays in outdoor or high-humidity areas.
