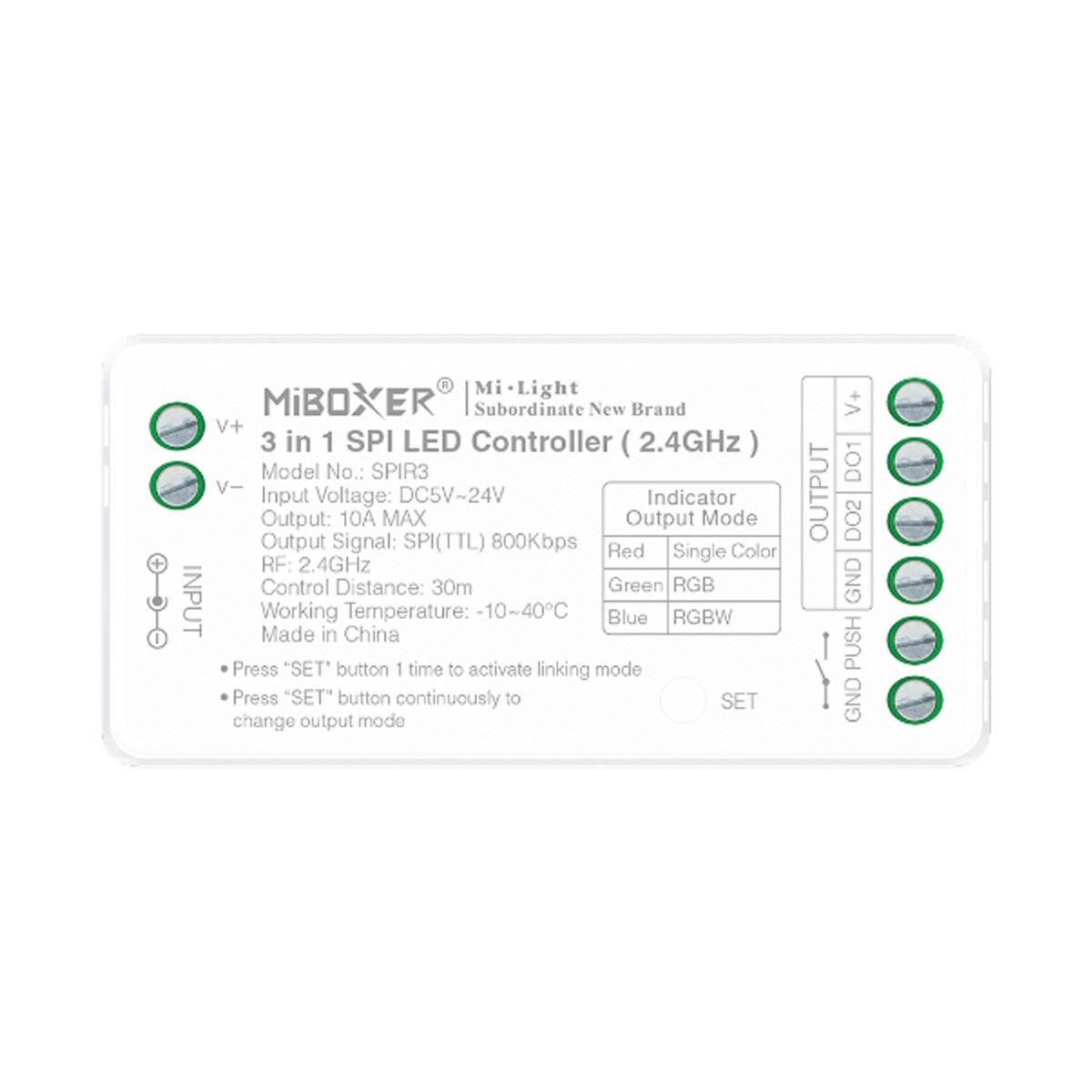

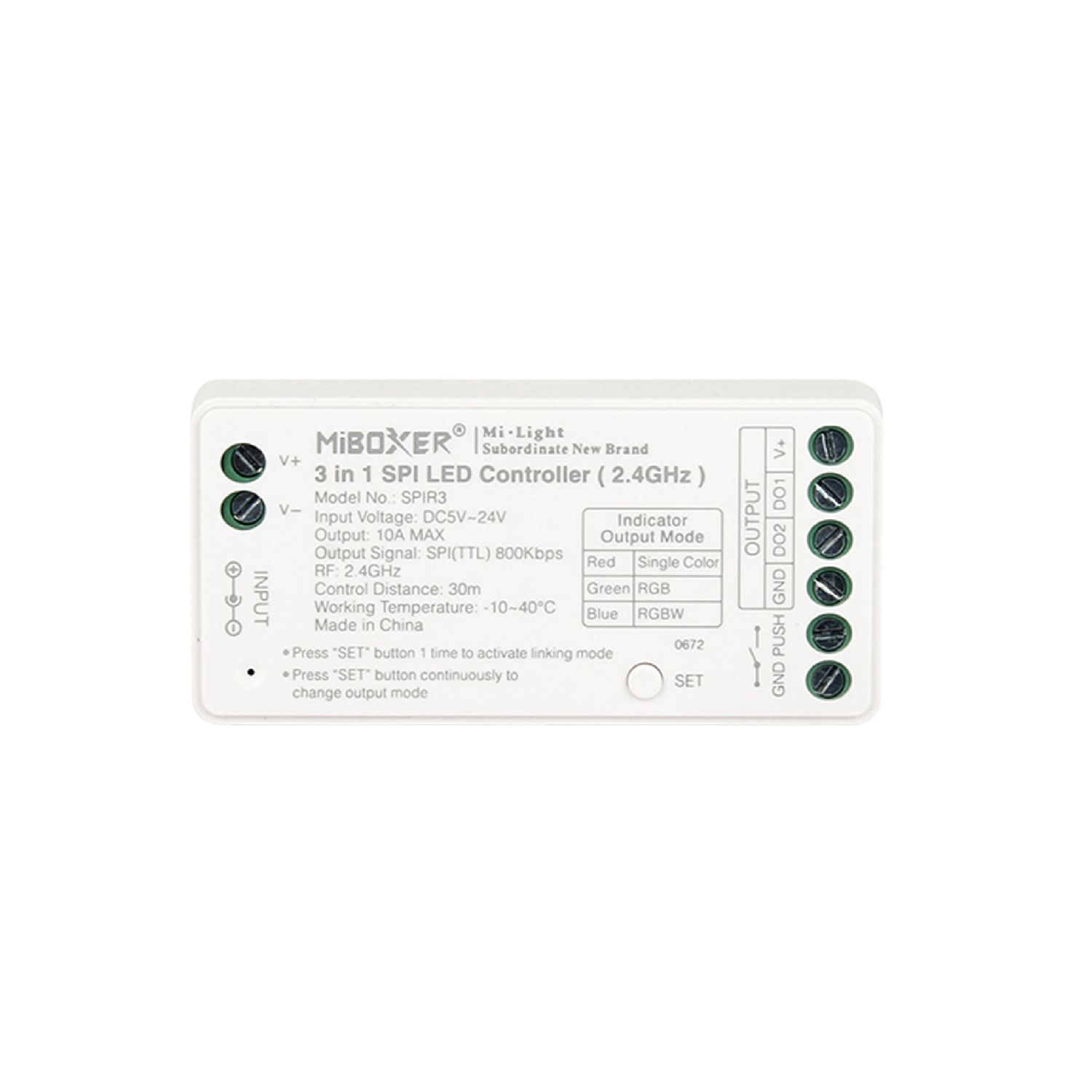

3 in 1 SPI LED Controller RGB+RGBW 5-24V 10A 2,4Ghz

3-in-1 SPI LED Controller (Single Color + RGB + RGBW)

The 3-in-1 SPI LED controller is a versatile solution for managing LED strips in three different modes: single color, RGB and RGBW. Perfect for advanced lighting projects, it is compatible with a wide range of chips and can be easily integrated into larger systems.

Interesting facts:
Output modes: Single color (up to 2048 pixels), RGB (1536 pixels) and RGBW (1024 pixels), selectable using the "SET" button.

Remote control: Compatible with RF (2.4GHz) remote controllers, such as models (con-109), with a range of up to 30 meters.

Output signal: Works with 800 Kbps SPI (TTL) signal for precise control of LED strips.

Dynamic modes: It has 20 editable dynamic modes, and the possibility of changing modes using a push button.

Do Not Disturb Function: Ideal for areas with power outages, as it maintains the lighting status and helps save energy.

Advanced Settings: Adjust the strip length (from 8 to 2048 pixels), color sequence, and on/off time.

Power: Compatible with DC 5V-24V power supplies, with output up to 10A.

Chip Compatibility: Supports chips such as TM1809, WS2811, SK6812, UCS1903, among others, without the need for additional configuration.

It has CE, EMC and RED certifications to ensure safety and reliable performance.

Technical Specifications
