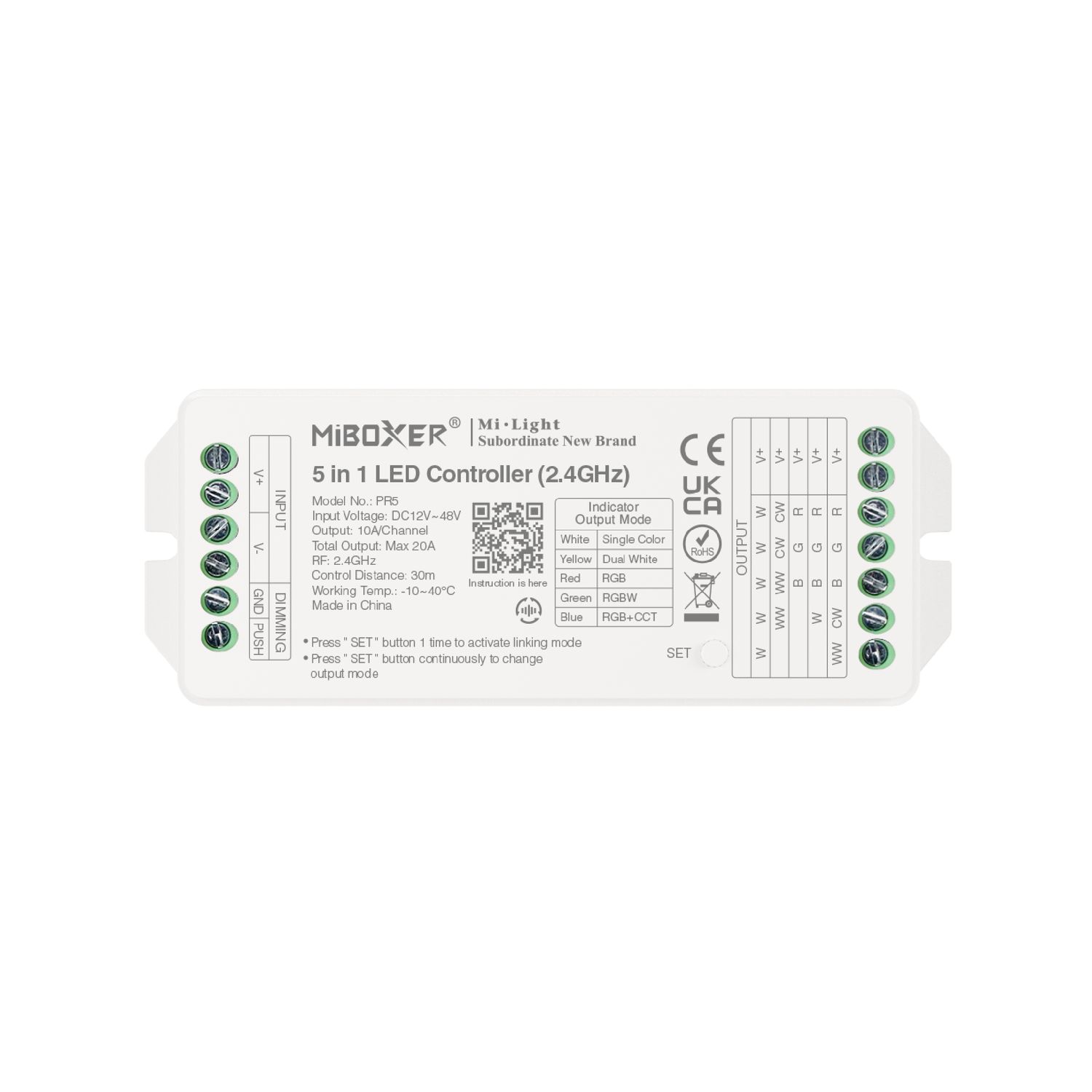

5 in 1 LED Controller 2.4GHz Output 20A Max IP20

5 in 1 LED Controller 2.4GHz Output 20A Max IP20

The controller is most versatile and powerful solution for LED lighting management. This 5-in-1 device is designed to control any type of LED strip (Single Color, CCT, RGB, RGBW, or RGB+CCT) with a single unit. With an output capacity of up to 20A and a wide voltage range (12-48V), it is the perfect choice for professional large-scale projects requiring precision, power, and simplified smart control.

Key Features

• Universal 5-in-1 Compatibility: One controller for all your needs. Easily switch between modes: Single Color, Dual White (CCT), RGB, RGBW, and RGB+CCT with a simple button press.

• High-Power Output: Supports a maximum output of 20A, handling up to 960W of power (at 48V), ideal for long runs of high-density LED strips.

• Auto-Forwarding Technology: Controllers act as signal repeaters, forwarding the remote signal to other units within a 30m radius, enabling a virtually unlimited control range.

• Auto-Synchronization: Ensures multiple controllers run the same dynamic modes simultaneously, achieving perfectly coordinated lighting effects.

• High-Precision Dimming: Features 4096 levels of smooth dimming and a logarithmic curve, allowing brightness adjustment from 0.1% to 100% without flickering.

• Optional Smart Home Integration: Compatible with App (Tuya Smart/Smart Life), Alexa, and Google Home by adding the WiFi CON-50 Gateway (sold separately).

Technical Specifications

• Input Voltage: DC 12V / 24V / 36V / 48V

• Output Current: Max. 20A (Total)

• Max Output Power: 240W (12V) / 480W (24V) / 960W (48V)

• Control Signal: RF 2.4GHz

• Control Distance: Up to 30 meters

• IP Rating: IP20

• Dynamic Modes: 18 built-in effects

• Dimensions: 119x47x23mm

Recommended Applications

• High-end architectural lighting in hotels and halls.
• Centralized LED strip control for Smart Homes.
• Commercial installations requiring coordinated lighting across multiple zones.
• Compatible with DMX512 control systems (requires additional transmitter).
