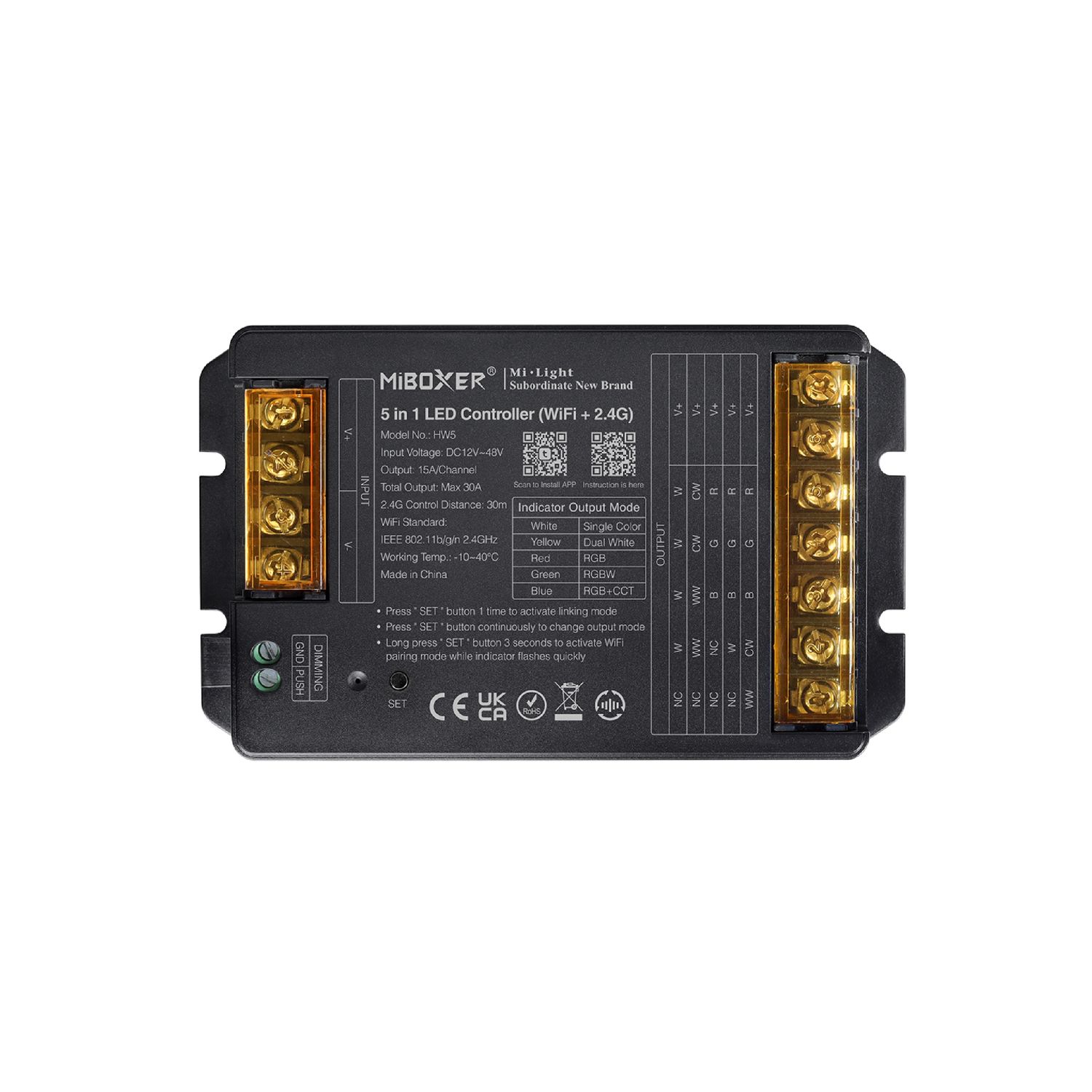

5 in 1 LED Controller WiFi 2.4GHz Output 30A Max IP20

5 in 1 LED Controller WiFi 2.4GHz Output 30A Max IP20

The controller represents the top tier in smart LED lighting management. It is an extremely powerful 5-in-1 device, capable of handling up to 30A of total current. By integrating WiFi + 2.4G RF connectivity, it allows for absolute control of any LED strip (from Single Color to RGB+CCT) via App, voice commands, or remote controls. It is the ideal solution for large-scale projects requiring massive power and simplified management.

Key Features

• Extreme Power (30A): With an output capacity of up to 30A, it can power very long runs of high-density LED strips, supporting up to 1440W (in 48V installations).

• Native WiFi (No Gateway Needed): Connects directly to your 2.4GHz WiFi network. No need to purchase additional hubs or gateways to enjoy smart control from your smartphone.

• Voice and App Control: Fully compatible with Smart Life, Amazon Alexa, and Google Assistant. Adjust brightness, change colors, or create scenes with simple voice prompts.

• True 5-in-1 Versatility: One controller for everything. Configure the output mode to suit your needs: Single Color, CCT, RGB, RGBW, or RGB+CCT.

• Forwarding & Sync Technology: Like professional models, the HW5 forwards the signal to other controllers within a 30m radius and automatically synchronizes dynamic modes for uniform lighting.

• Extended Voltage Range: Supports from 12V to 48V DC, making it compatible with the new generation of high-voltage LED strips that minimize voltage drop.

Technical Specifications

• Input Voltage: DC 12V / 24V / 36V / 48V

• Output Current: Max. 30A (Total) / 10A per channel

• Max Output Power: 360W (12V) / 720W (24V) / 1080W (36V) / 1440W (48V)

• Communication: WiFi IEEE 802.11b/g/n 2.4GHz + RF 2.4GHz

• RF Control Distance: Up to 30 meters

• IP Rating: IP20 (Indoor use)

• Dimensions: 124x54x28mm

Recommended Applications

• Lighting for large industrial warehouses or retail stores with high-power strips.
• Luxury residential projects requiring high power centralization in a single unit.
• Facade or perimeter control using 24V or 48V LED strips.
• Advanced Smart Home automation with multiple coordinated zones.
