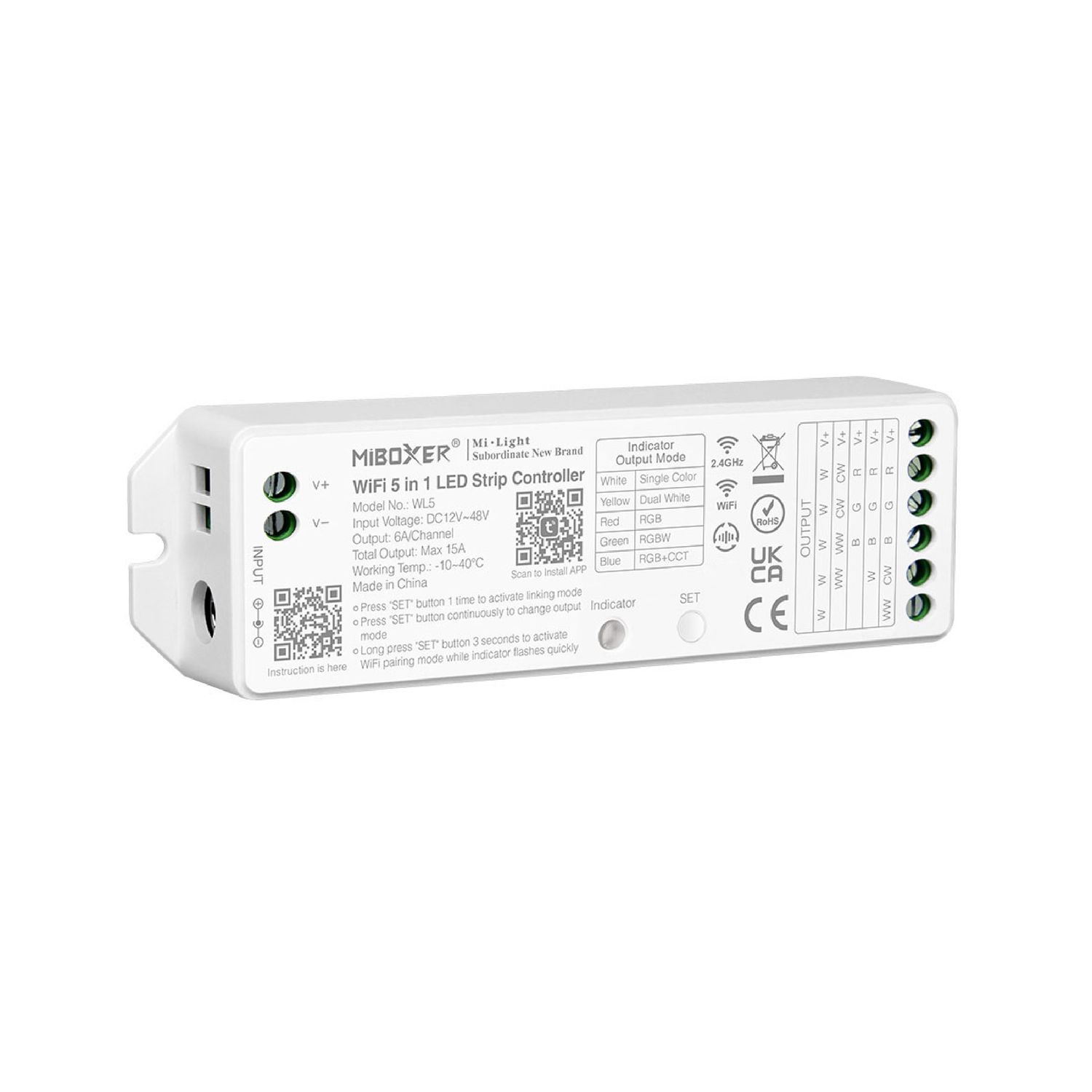

5 in 1 LED Strip Controller WiFi 2.4GHz Output 15A Max IP20

5 in 1 LED Strip Controller WiFi 2.4GHz Output 15A Max IP20

The controller is the ultimate solution for the modern smart home. This 5-in-1 device allows you to manage any type of LED strip (Single Color, CCT, RGB, RGBW, or RGB+CCT) directly from your smartphone. Featuring integrated WiFi + 2.4G RF modules, it combines the convenience of App and Voice control (Alexa/Google Home) with the reliability of traditional remote controls, all in a compact and efficient design.

Key Features

• Dual Control (WiFi + RF): Control it via the Smart Life App from anywhere in the world, or use a MiBoxer 2.4GHz RF remote when you are at home.

• Voice Assistant Integration: Compatible with Amazon Alexa and Google Assistant. Change colors, turn on/off, or adjust brightness using simple voice commands.

• 5-in-1 Versatility: A single unit compatible with 5 output modes. Easily configure the output mode (Single Color to RGB+CCT) to match your current or future LED strip.

• No Gateway Required: Connects directly to your home's WiFi router (2.4GHz frequency), simplifying installation and reducing additional costs.

• Automation and Schedules: Program automatic on/off times, create custom "scenes," and set timers from the App to make your lighting fit your daily routine.

• Signal Synchronization: Like the professional line, it features auto-signal forwarding between controllers to extend range and keep dynamic effects perfectly synchronized.

Technical Specifications

• Input Voltage: DC 12V / 24V
• Output Current: 6A per channel (Max. 15A Total)

• Max Output Power: 180W (12V) / 360W (24V)

• Communication: WiFi IEEE 802.11b/g/n 2.4GHz + RF 2.4GHz

• RF Control Distance: Up to 30 meters

• IP Rating: IP20 (Indoor use)

• Working Temperature: -20°C to 60°C

• Dimensions: 124 mm x 38 mm x 23 mm

Recommended Applications

• Residential home automation: Full light control in living rooms, kitchens, and bedrooms.
• Lighting projects requiring remote control when away from the premises.
• Replacement of standard controllers to upgrade existing installations to Smart.
