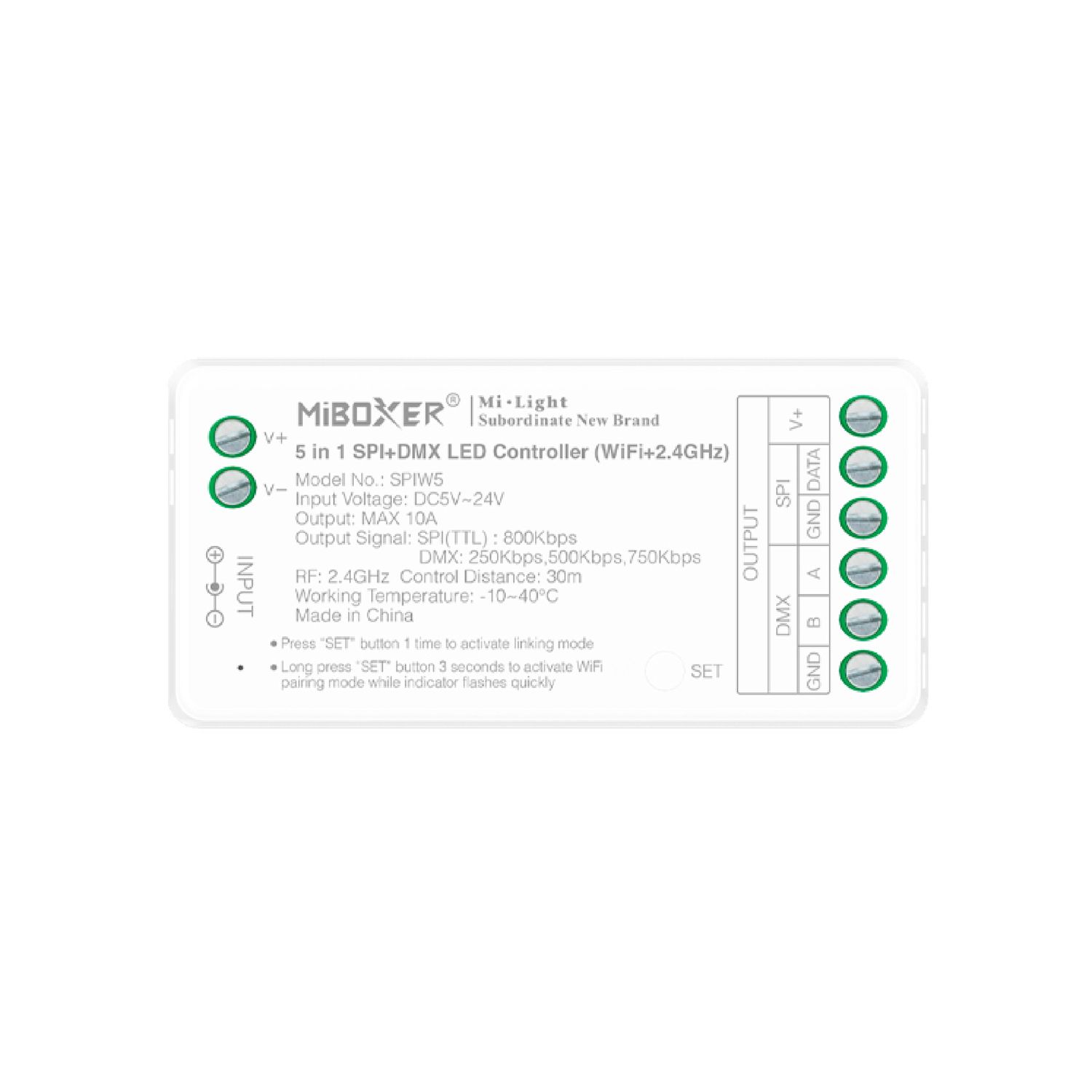

5 in 1 SPI LED Controller RGB+RGBW 5-24V 10A 2,4Ghz WIFI
SKU con-125
$23.99
In stock
5 in 1 SPI LED Controller RGB+RGBW 5-24V 10A 2,4Ghz WIFI
Product Details
SPIW5 5 in 1 SPI+DMX WIFI+2.4G LED controller is built in SPI/DMX dual communication protocol, compatible with DC5-24V input, it’s special controller for SPI LED strip light. The controller support WIFI+2.4G wireless transmitting technology Setting different features like adjust different modes, color, brightness and change dynamic illumination via SMART LIFE APP
- 5 in 1 LED controller, single color/CCT/RGB/RGBW/RGBCCT
- Color, pixel points, speed, static mode and dynamic mode dimmable
- Dynamic mode : 28 kinds of white color for selection, 80 kinds of RGB color for selection, all modes can dim color, brightness, width and speed.
- 8 kinds of music mode work with built-in microphone or smart phone microphone
- Freely switching dynamic and music mode
- Setting boot animation via SMART LIFE APP
- Output signal : SPK(TTL) 800Kbps, DMX: 250Kbps, 500Kbps, 750Kbps
- Have DND mode, usually used for power failure area to save power
Technical Specifications
|
Length |
2,93 in |
|
Width |
1,42 in |
|
Height |
0.67 in |
|
Color |
RGB | RGBW |
|
Casing Color |
White |
|
Operating Temperature |
14 ~ -40 °F |
|
Comunication Mode |
Wi-Fi - 2.4GHz |
|
Sensing Distance |
98 ft |
|
Output Current |
10 A |
|
Input Voltage |
5 - 24 Vdc |
|
Use |
Indoor |
|
Safety Standard |
CE |
