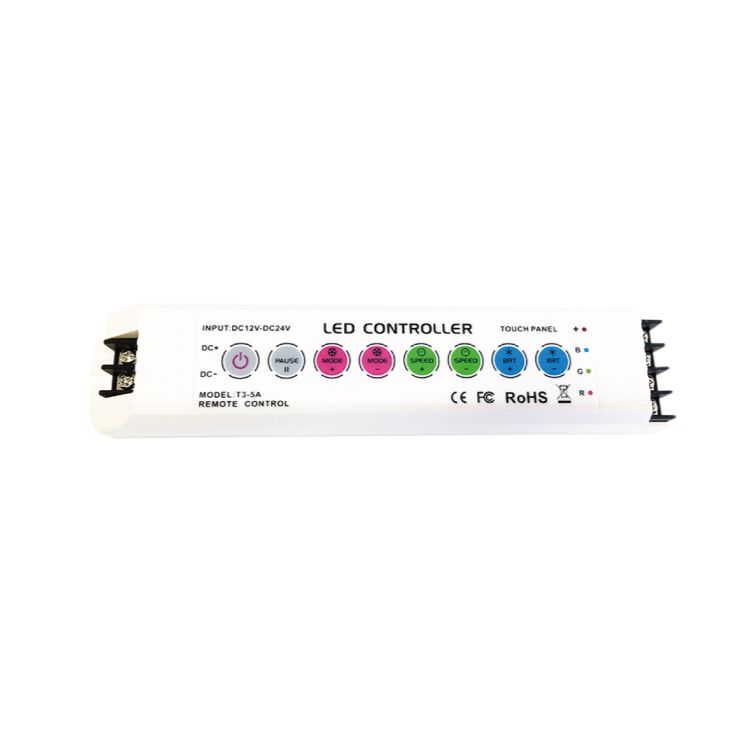

LTECH RGB LED Touch Receiver, 12-24V 15A, compatible with con-60

The T3-5A model is a 2.4GHZ RF wireless synchronization RGB receiver which adopts LTECH´s multiple global initiate technology. The control system consists of two parts, the RF remote control and receiver (sold seperately). It can be used with either 12V or 24V color changing (RGB) LED strip lights.

Highlights:

Extended Range:One remote can realize the signal synchronization on unlimited LED RGB Controllers within a 98 feet distance (30 meters).

Modes to choose from:Featuring 32 changing modes with smooth changing effects and no flicker on the LED light.

Your lights, your choosing:Unique full-color circle touch control technology, eight touch keys on the controller, you can select the functions of switch, pause, changing modes, speed and LED brightness.

How does it work?

1. Turn on the receiver and remote control
2. Press “on/off” on the receiver (T3-5A) for 2 seconds, there is a buzzer sound, do not release the “on/off” button, at the same time press any key on the remote control (except the on/off key). U
3. Once the green indicator light of the remote flashes 3 times and long buzzer sound rings at the same time, the learning ID will be successful and you can now release all the keys.
4. If you have to control multiple receivers synchronously, each receiver should go through the learning ID process described above.

Technical Specifications
