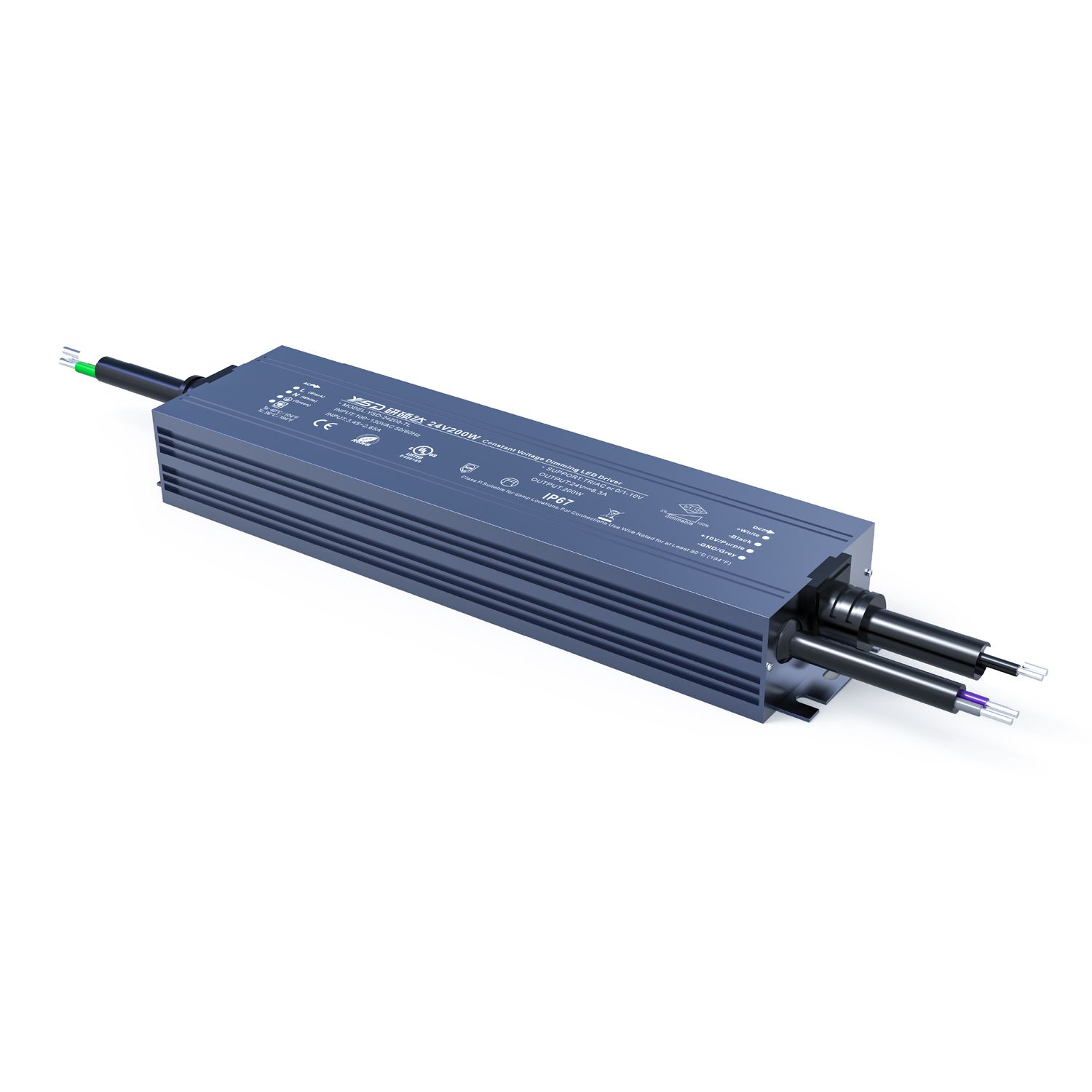

Outdoor TRIAC & 0-10v.Dimmable DC 24V 12.5A 300W, IP67

300W 24V 12.5A LED Power Supply | IP67 Waterproof Dimmable Driver | 5-in-1 TRIAC & 0-10V Multivolt 100-277V

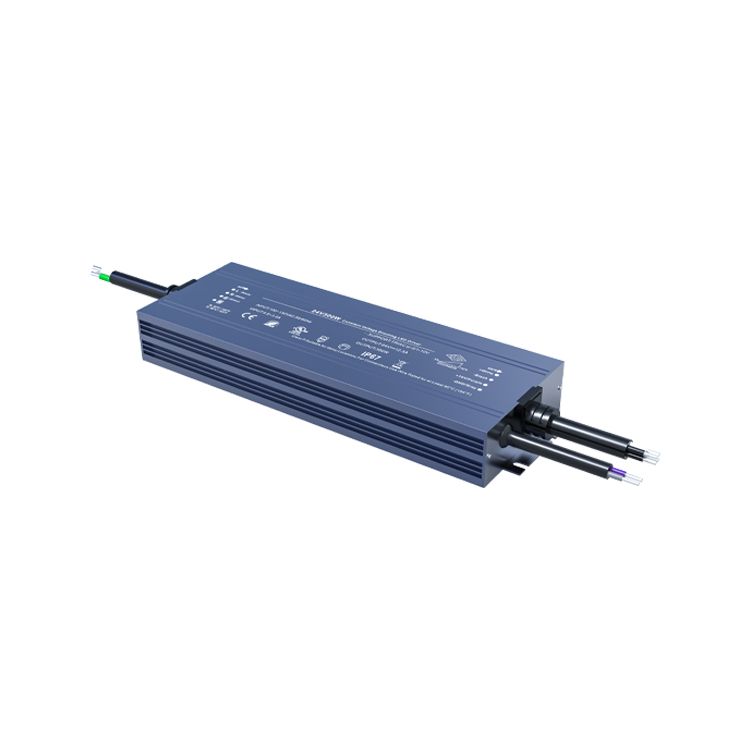

Power your outdoor and high-demand lighting projects with unmatched control. This 300W heavy-duty driver provides smooth, flicker-free dimming (down to 0.1%) for 24V LED systems. Encased in a rugged IP67-rated aluminum housing, it is fully protected against dust and water immersion, making it the perfect choice for architectural facades, landscaping, and industrial environments.

A high-quality 24Vdc 12.5A, TRIAC dimmable power supply is ideal to make connections that require a high power consumption (300W or less). They are designed to provide a reliable and steady source of electricity for your LED lights.

TRIAC stands for Triode for Alternating Current used to control power, when used in lighting fixtures, it’s commonly known as “TRIAC dimming”. TRIAC devices are very common in AC power control applications. They have the ability to switch high voltages and very high levels of current in two parts of an AC waveform. They are often used as a dimming source in domestic and commercial lighting applications, and can also serve as a power control in motors.

• Output Power: 300W Max.

• Output Voltage: 24V DC Constant Voltage.

• Rated Current: 12.5A.

• Input Voltage Range: 100-277V AC.

• 5-in-1 Dimming Technology: Compatible with TRIAC (Forward/Reverse Phase), 0-10V, 1-10V, 10V PWM, and Potentiometer.

• Dimming Depth: Super fine 0-100% dimming with a 0.1% minimum depth.

• Ingress Protection: IP67 rated for wet and outdoor locations.

• Power Factor (PF): >0.9 at full load for high energy efficiency.

• Protections: Includes built-in Short Circuit, Overload (Hiccup mode), and Over Temperature protection.



 Compliance & Safety: UL8750 listed, Class P, Type HL (Hazardous Location), and FCC Part 15 Subpart B compliant.

 Build Quality: Robust aluminum housing designed for optimal heat dissipation by free air convection.

 Working Environment: Reliable performance in extreme temperatures ranging from -40°C to +60°C (refer to derating curve for high-temp stability).

Wiring Specs: 18AWG input and dimming cables; 14AWG output cables for high current stability.

Notes:

■ For optimum performance, do not exceed maximum load, the unit will be turned off in case of faults and overloads to protect the unit and connected equipment.

■ For best use, the Power Supply should be 20% (approx.) higher (Watts/Amps) than the total required to run your system.

■ The power supply is considered as a component that will be operated in combination with final equipment.

■ Before power on, please check the input voltage switch to avoid damage.

■ Suitable for indoor and outdoor use.
