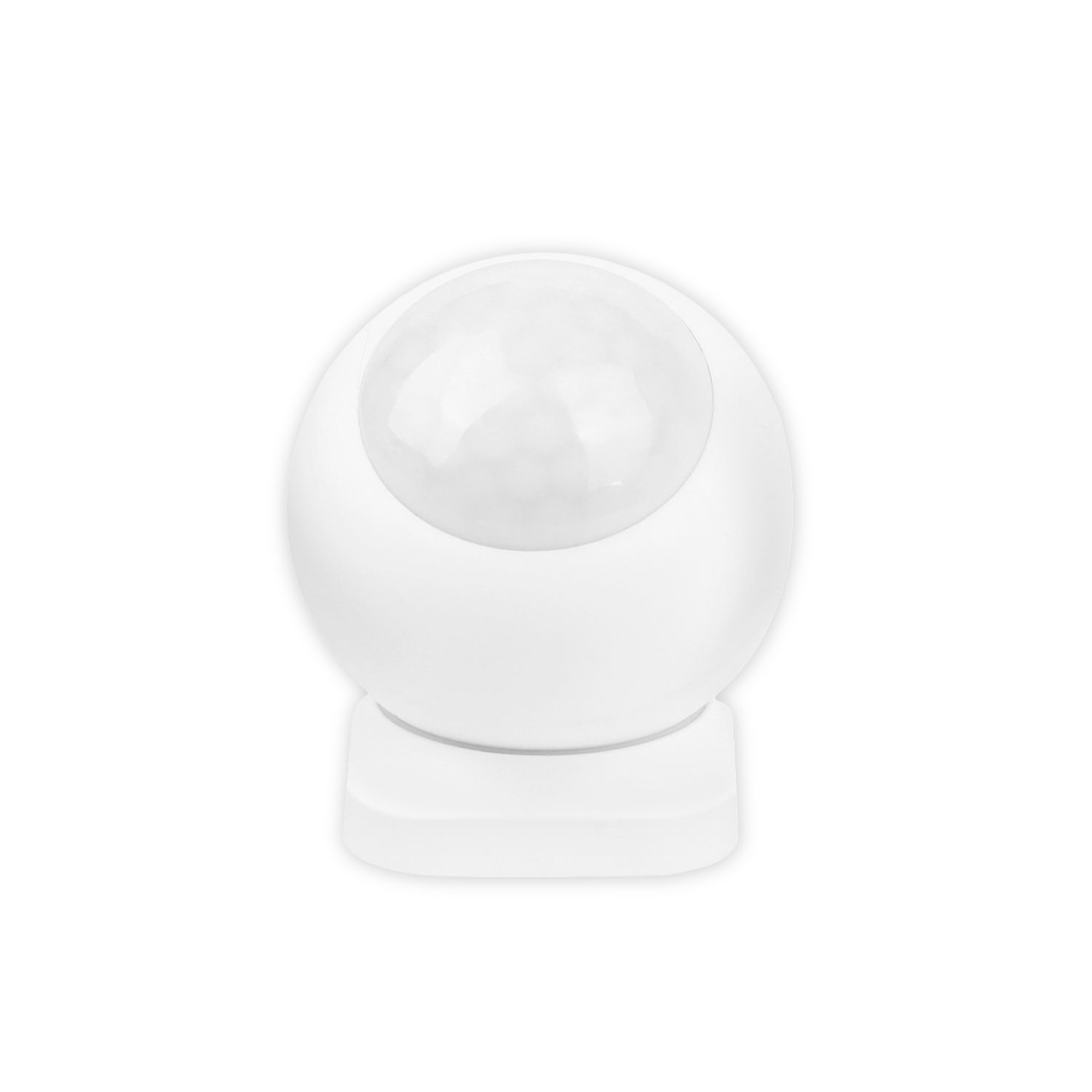

PIR Sensor 360° 2.4GHz

360° PIR Motion Sensor | 2.4GHz Wireless with Magnetic Mount

Automate your lighting with total freedom and zero cables. The PIR Sensor by MiBoxer intelligently detects presence to trigger your LED lighting, helping you save energy while enhancing home security. Featuring a 360° rotatable magnetic base, it allows for precise aiming exactly where detection is needed, seamlessly integrating into any space without the need for complex wiring or wall damage.

• Detection Technology: High-sensitivity Passive Infrared (PIR).

• Communication Protocol: 2.4GHz RF (Stable wireless transmission).

• Detection Angle: 120°.

• Detection Range: Up to 7 meters (approx. 23ft).

• Control Distance (RF): Up to 30 meters (signal range to the receiver).

• Power Supply: 1 x 3V CR123A Battery (Ultra-low standby power consumption: 12μA).

• Hold Time Settings: Programmable (30s / 2min / 10min / 60min) via compatible remote.

• Integrated Light Sensor: Includes a photocell to prevent daytime triggering, maximizing energy efficiency.

• Mounting: 360° adjustable magnetic base.

• IP Rating: IP54 (Suitable for indoors and protected semi-outdoor areas).

• Working Temperature: -10°C to 40°C.

• Dimensions: 56 x 49 x 56 mm.

 Mandatory Compatibility: This sensor operates via Radio Frequency (RF) and is exclusively compatible with MiBoxer/Mi-Light 2.4GHz product lines (Smart bulbs, LED strip controllers, floodlights).

 Required Accessories: Requires one CR123A Battery and a MiBoxer Remote Control for the initial configuration of timing and intensity parameters.

 Fast Installation: Since no wiring to the lamps is required, it reduces labor costs by up to 80% in retrofitting projects

Technical Specifications
