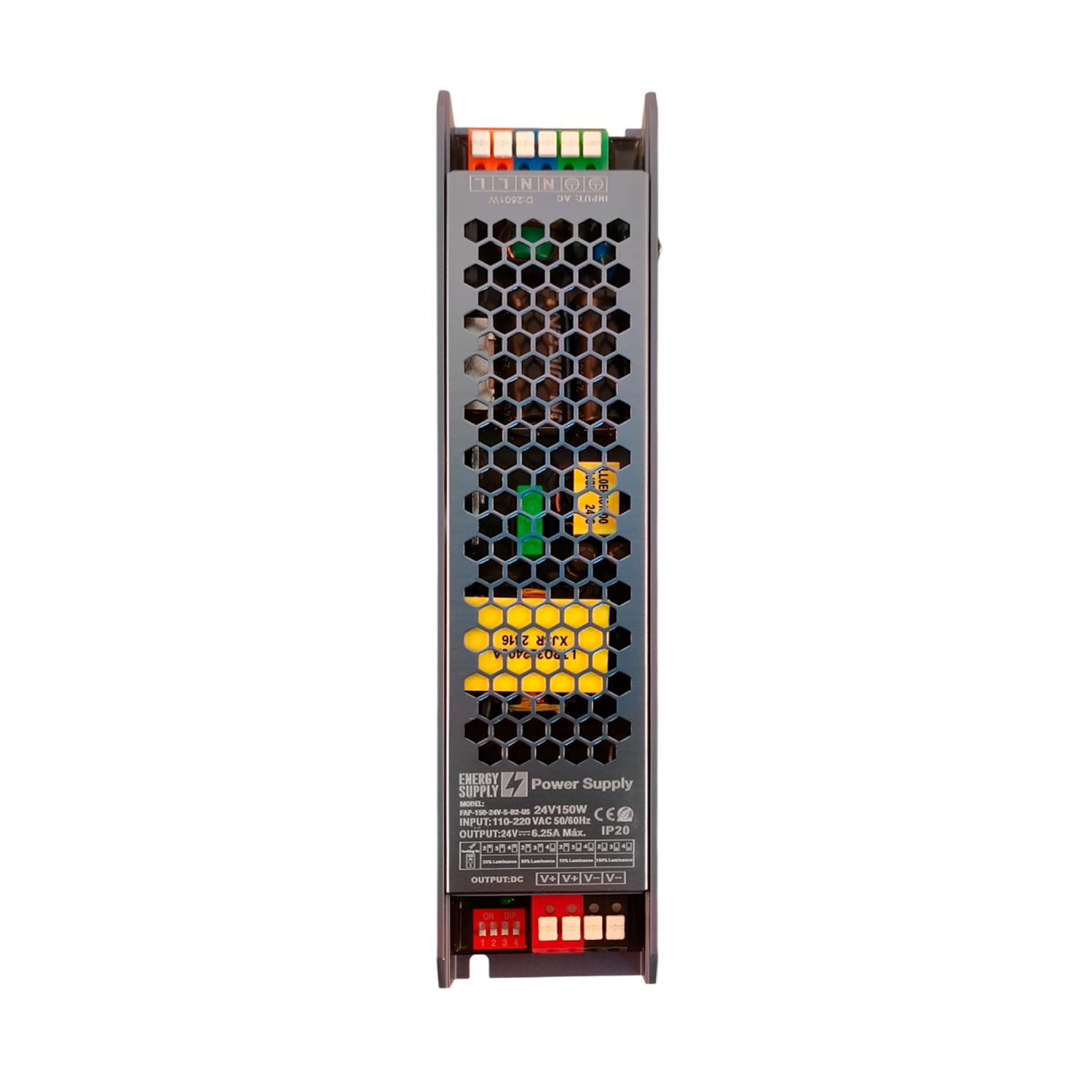

Power Supply, Indoor IP20, 24V 150W 110-220Vac

5-in-1 Intelligent LED Driver (150W, 24VDC, IP67) – High-Efficiency Dimmable Power Supply for Professional Projects.

Take your lighting projects to the next level with unprecedented versatility. This power supply allows you to smoothly adjust the intensity of your LED lights with a 100% flicker-free performance, ensuring absolute visual comfort and perfectly customized environments. Engineered with a heavy-duty, waterproof housing, it is the ideal ally to guarantee an efficient, safe, and long-lasting operation in any home or commercial space.

• Input Voltage: 176-264Vac (50Hz).

• Output Voltage: 24VDC.

• Output Current: Max 6.25A.

• Output Power: 0-150W.

• 5-in-1 Dimming Interface: TRIAC, 0-10V, 1-10V, 10V PWM, and Resistance (10-100K).

• Dimming Range: 0-100% (with a minimum dimming depth of Max. 0.1%).

• PWM Frequency: 700Hz - 16KHz.

• Typical Efficiency: 93%.

• Power Factor: PF > 0.55 / 230Vac at full load.

• IP Rating: IP67 (Dust-tight and protected against temporary immersion).

• Working Temperature: ta: -40°C - 45°C / tc: 90°C.

• Built-in Protections:

  • Over Temperature Protection: Shuts down output voltage; re-power on to recover.

  • Short Circuit Protection: Two-level protection (Level 1: automatically recovered / Level 2: requires power to be turned on again after fault is eliminated).

• Compliance & Standards:

  • Safety Standards: Certified under IEC/EN61347-1 and IEC/EN61347-2-13.

  • EMC Emission: Complies with EN55015, EN61000-3-2 Class C, and IEC61000-3-3.

  • EMC Immunity: Rated under EN61000-4-2,3,4,5,6,8,11 and EN61547.

  • Strobe/Flicker Standard: Meets IEEE 1789 standard, achieving a high-frequency exemption level (completely safe for human health and high-definition video recording).

  • Additional Markings: CE, SELV (Safety Extra-Low Voltage), and RoHS compliant.

For correct operation, this driver requires 24VDC constant voltage LED strips or fixtures , along with a compatible controlling dimmer system using any of its 5 supported protocols (such as TRIAC wall dimmers, 0-10V/1-10V control systems, or PWM controllers)

Technical Specifications
