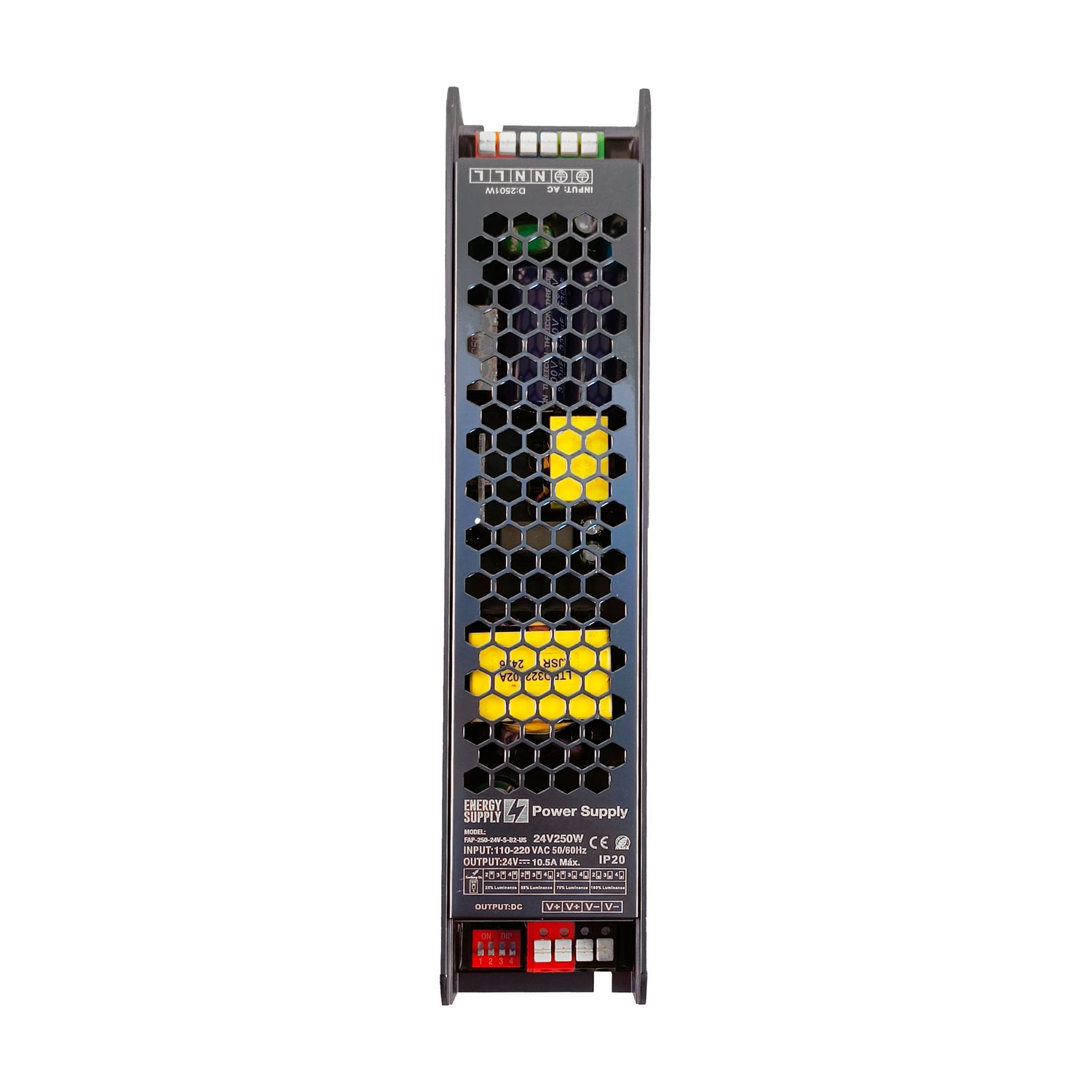

Power Supply, IP20, 24V 250W 110-220Vac

Slim Indoor LED Power Supply (250W, 24VDC, 110-220Vac, IP20) – High-Reliability Switching Transformer for LED Strips and Modules.

Ensure optimal performance and completely stable lighting for your technological and decorative projects. This 250W power supply smoothly converts alternating current from your main grid into a safe, continuous, and reliable 24V constant voltage output, shielding your LED strips from electrical fluctuations and significantly extending their operational lifespan. Thanks to its advanced switching technology, it reduces power consumption, minimizes heat dissipation, and delivers an ultra-compact design, letting you upgrade any indoor residential or commercial environment with absolute peace of mind.

• Output Power Range: 0 - 250W (Max. 250W).

• Output Voltage: 24VDC.

• Output Current: Max. 10.5A.

• Input Voltage Range: 110-220Vac (Supports wide input variations with an operational range of 100-240Vac, 50/60Hz).

• Technology / Features: Constant Voltage (C&V) switching power supply featuring a soothing soft-start function for eye protection and smooth initialization.

• Start-up Time: < 400ms at 230VAC / < 600ms at 115VAC (at full load).

• Ingress Protection Rating: IP20 (Designed exclusively for dry indoor spaces, protected against solid objects up to 12mm).

• Cooling System: Free air convection cooling (highly reliable, fanless design).

• Quality Control: 100% full-load burn-in tested for 4 hours at high temperature ($40^\circ\text{C} \pm 5^\circ\text{C}$).

• Built-in Safety Protections: * Short Circuit Protection: Automatic recovery.

  • Over Load Protection: Active safety limitation.

  • Over Voltage Protection: Built-in defense mechanism.

  • Over Temperature Protection: Automatic thermal shutdown.

• Regulatory Compliance & Standards:

  • Safety Regulations: Certified under global lighting safety standards IEC/EN61347 and IEC/EN60950.

  • EMC Testing Standards: Complies with EN55015:2013, EN61547:2009, EN61000-3-2:2014, and EN61000-3-3:2013.

  • Markings & Approvals: CE, SAA (R-41123510), CB, SELV (Safety Extra-Low Voltage), Class II, and RoHS compliant.

Requires a standard AC power cord/input wiring connected to the terminal blocks, along with 24VDC constant-voltage LED strips, architectural modules, or DC-driven controllers (Dimmers/Receivers).

Engineered with precise component derating (ensuring electrical stress never exceeds maximum component ratings under steady conditions), making it the perfect choice for long-term integration inside commercial furniture, custom aluminum profiles, ceiling voids, and signage matrices.
