18AWG Cable, RGB LED lights, 1mm, 48V M�x, 3.28ft
SKU cab-06rgb-a2
$1.29
Sold out
Sold out
18AWG Cable, RGB LED lights, 1mm, 48V M�x, 3.28ft
Product Details

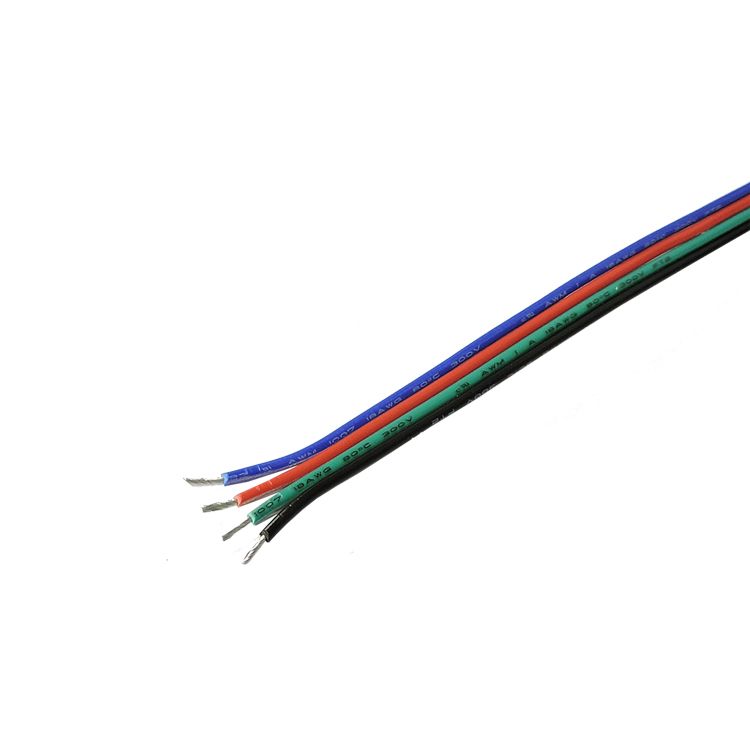

This product is specially designed to extend any RGB LED lighting system. It is made up of 4 Wires distinguished by color to make the connection easier.
�
Highlights:
Easy to use: It's easy to strip and cut with low resistance and soft. It can be bent arbitrarily.
Safety: The PVC bush is very even, which could prevent electric leakage better than others.
Premium quality: The core is made of copper with tin-plated, and the bush is made of PVC material, making it soft and very easy to bend. It's also premium quality damp-proof.
�
Note:
�This item DOES NOT include any connectors, jacks, or any other interface.
�The Listed Prices by length:
| 1 pc. | 3.28ft | 1m |
| 2 pcs. | 6.56ft | 2m |
| 3 pcs. | 9.84ft | 3m |
| 4 pcs. | 13.12ft | 4m |
| 5 pcs. | 16.40ft | 5m |
| 10 pcs. | 32.80ft |�10m |
| 15 pcs. | 49.21ft |�15m |
| 20 pcs. | 65.61ft |�20m |
| 25 pcs. | 82.02ft |�25m, and so on |
Technical Specifications
|
Max. Current |
5 A |
|
Input Voltage |
3-48 Vdc |
|
Wire Gauge |
18 AWG |
|
Diameter |
0.04 in |
|
Cross Sectional Area |
0.0324 in� |
|
Maximum Temperature Threshold |
175 �F |
|
OD Tolerance |
�0.2 �� |
|
Material |
PVC �� |
|
Flexible? |
Yes �� |
|
Installment |
Surface / Flush Mounted �� |
|
Conductor |
Copper with tin-plated �� |
|
Cable Color |
Black, Blue, Green and Red �� |
|
Use |
Indoor �� |
|
Length |
3,28 ft |
|
Weight |
1.11 oz |
|
Safety Standard |
CE �� |
