Single Color Mini Dimmer and RF Remote Control, 5-24V 30-144W 6A,

The 5-24V single color LED dimmer presents multiple special dynamic modes, brings a new application for single color LED decoration.

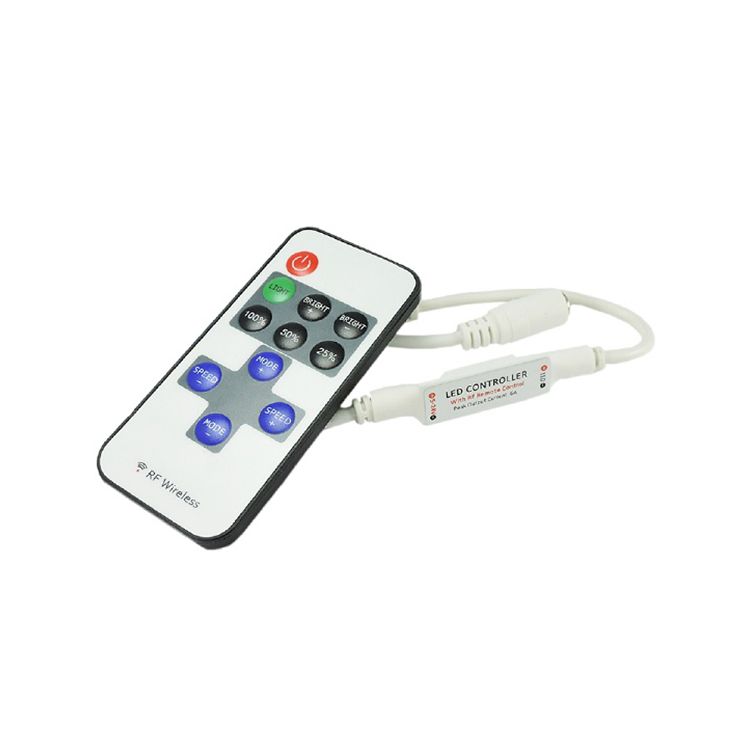

We combined the mini dimmer with an RF remote control, a more convenient way to realize the best visual effect of your LED strip. This mini dimmer is tiny in its size, which makes it easy to be concealed.  Through connecting with LED strips, and accompanied by the RF remote you will be able to control the strip and achieve different functions such as dynamic mode, dynamic speed level and brightness adjustment.

The RF controller adopts the advanced micro control unit, with 433MHz wireless signal to do the controlling. It is used for controlling a variety of lamps whose source of light is LED. For instance, flexible light strip, wall washer lamps, glass curtain wall lights and so on. It has an easy connection, simplicity to use and according to the customers’ needs, it can manage ten levels brightness adjustment, eight monochromatic dynamic modes, fade-in dimming, strobe, flicker and other kinds of modes, with ten levels of speed adjustment, and large speed span.

With this LED Dimmer you can change the brightness of your LED Lighting. There are controls on the dimmer itself, as well as on the included remote. Connect the LED Dimmer between the 5-24V power supply and the LED Strip. This dimmer is not suitable for RGB Strips. This dimmer can connect to max. 144 Watts (30W-5V | 72W-12V | 144W-24V) of LED Strips. If you want to be able to dim more LED Strips with one remote, you need to use amplifiers. Please do not hesitate to contact us for advice.

Features:

 8 dynamic effects, 10-level dimmer, 256-grade PWM.

 49.2ft | 15m at outdoors, the controller can be hidden, and you do not need to point at the controller.

 Smooth dimmer effect, adjustable speed and brightness.

 Auto save function, the controller will remember your last setting of light mode when you switch on the lights again.

How does it work?

1. Turn On/ Standby: Press this key to turn on or to switch to standby mode. Unit will turn on and restore to previous status at powering on moment.

2. Lighting mode: Switch to lighting mode from dynamic mode.

1. 3/8/9. Dimmer: Adjust shortcuts switch to 100%, 50%, or 25% brightness lighting mode.

2. 4/6. Dynamic Mode: Adjust switch to dynamic mode from lighting mode, or switch between different dynamic modes.

3. 5/7. Speed Adjust: Adjust the playing speed of dynamic modes. Press SPEED+ to increase speed and press SPEED- to decrease.

4. 10/11. Brightness: (Dimmer) Adjust lighting mode brightness. Press BRIGHT+ to increase brightness and press BRIGHT- to decrease.

Installation method:

• Power Supply: This unit accepts a DC 5V to 24V power supply. The red cable should be connected to positive and the black cable to negative. Please select proper power supply according to the LED application.

• LED Output: The red cable should be connected to the positive LED and the black cable to negative. The peak output current is 6A, please reduce load if main unit is overheating.

• Remote Control: Please pull out the insulate part before using. The RF wireless remote signal can pass through barrier, so it's not necessary to aim at the main unit when is on. For proper receiving remote signal, do not install the main unit in closed metal parts. The remote battery is 3V CR2025 type, please only replace it with same the battery type.

Technical Specifications
