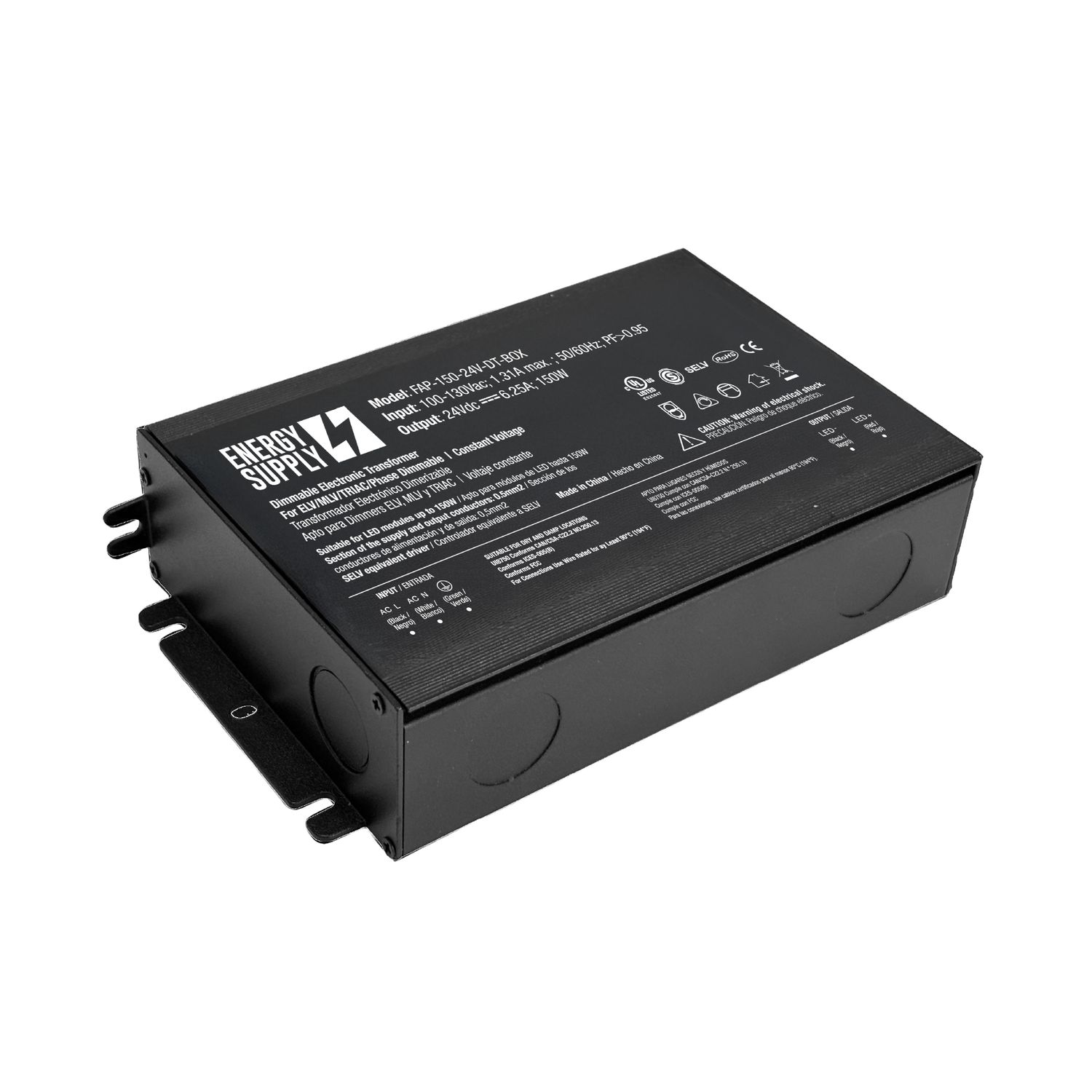

TRIAC Dimmable LED Driver with junction box 150W 6.25A 90-130V, IP65

TRIAC Dimmable LED Driver 150W 6.25A 90–130V with Junction Box, IP65

The TRIAC Dimmable LED Driver 150W is designed to deliver precise and stable power control for 24V LED strips and luminaires, combining high energy efficiency with universal dimming compatibility. Utilizing TRIAC/ELV/MLV dimming technology, it provides a smooth 0–100% dimming range. Its compact and robust design with an IP65-rated junction box ensures reliable performance in both indoor and outdoor protected installations, resistant to moisture and dust.

With a power factor of 0.94, 90% efficiency, and an output capacity of 150W (6.25A), this driver guarantees a constant 24V output and stable operation under variable loads (10%–100%).

Key Features:

• Rated Power: 150W

• Output Voltage: 24V DC (constant voltage)

• Output Current: 6.25A

• Input Voltage Range: 90–130V AC

• Frequency: 47–63Hz

• Efficiency: 90% typical

• Power Factor: 0.94 @120V AC

• Dimming Range: 0–100%

• Compatibility: TRIAC / ELV / MLV dimmers

• Protection Rating: IP65 (suitable for dry, damp, and wet locations)

• Safety Features: Short circuit and overload protection with automatic recovery

• Operating Temperature: –40°C to +60°C

• Weight: 0.33 kg

Recommended Applications:

• 24V LED strips and modules

• Indoor and outdoor architectural lighting

• Dimmable decorative lighting

• Residential and commercial lighting systems with intensity control

Technical Specifications
