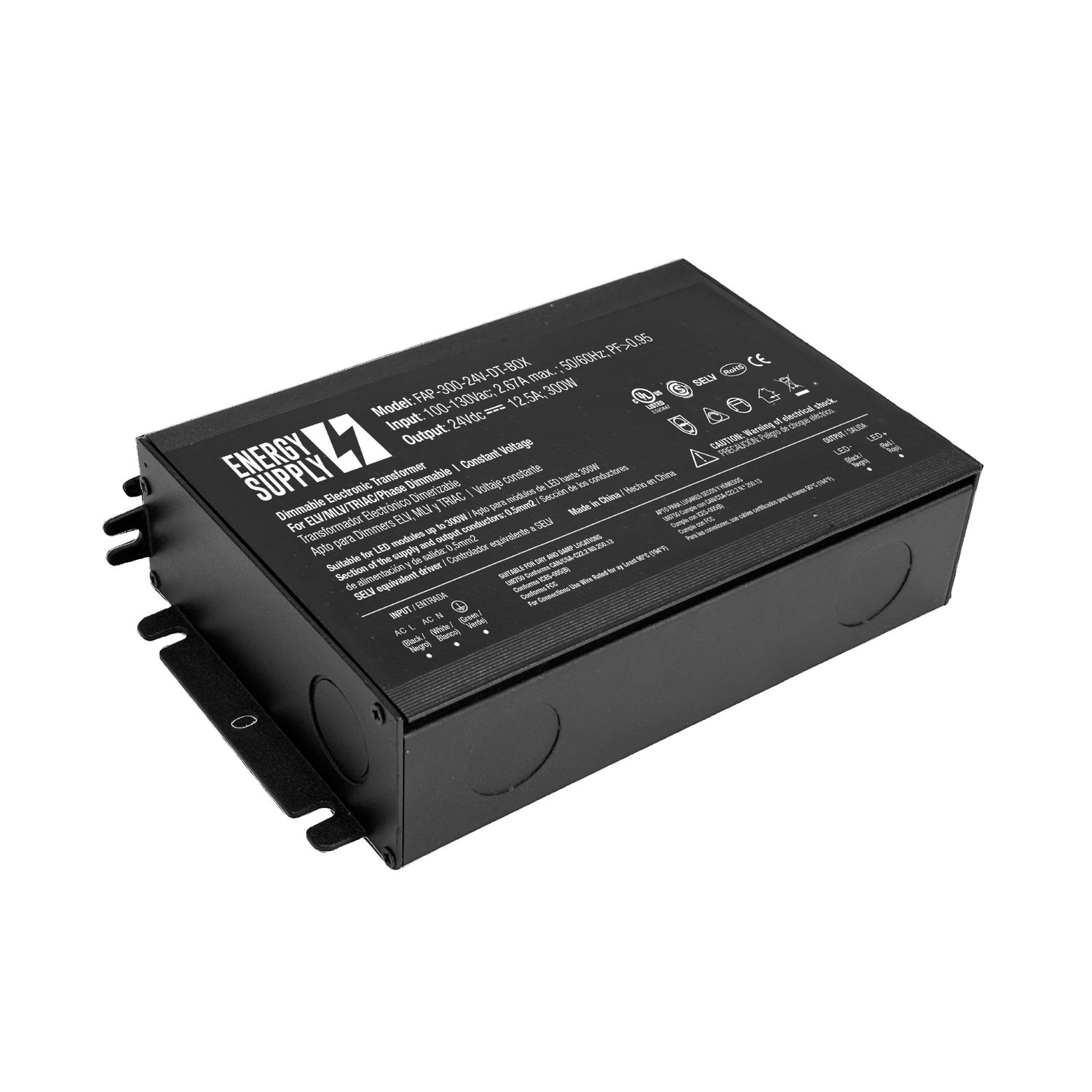

TRIAC Dimmable LED Driver with junction box 300W 12.5A 90-130V, IP65

TRIAC Dimmable LED Driver IP65 with Junction Box 300W 12.5A 90–130V

The TRIAC Dimmable LED Driver 300W provides a professional and efficient solution for powering and dimming 24V LED strips and luminaires. Designed with a sealed IP65-rated housing, it ensures reliable performance both indoors and outdoors, even in humid or dusty environments. Compatible with TRIAC, this driver works seamlessly with popular control systems such as Lutron-CL and Diva Series, guaranteeing smooth, flicker-free dimming and stable illumination.

Built with high-quality materials and advanced circuitry, it delivers up to 90% efficiency, power factor correction, and comprehensive protection against overload and short circuit, ensuring long-term performance and safety. With its 300W (12.5A) output capacity, it can efficiently power multiple LED sections while maintaining constant brightness and reliability.

 Technical Specifications:

• Model: OTM-TD300-JA24

• Input Voltage: 90–130V AC (120V nominal)

• Frequency: 47–63Hz

• Output Voltage: 24V DC

• Output Current: 12.5A

• Output Power: 300W

• Dimming Range: 0–100%

• Efficiency: 90% @ 120V

• Power Factor: 0.94

• Total Harmonic Distortion (THD): <20%

• Protections: Overload and short circuit (auto-recovery)

• Operating Temperature: -40°C to +60°C

• IP Rating: IP65

 Applications:

Perfect for LED strips, LED modules, architectural lighting, residential, and commercial installations requiring precise dimming control, high efficiency, and durable waterproof construction.
