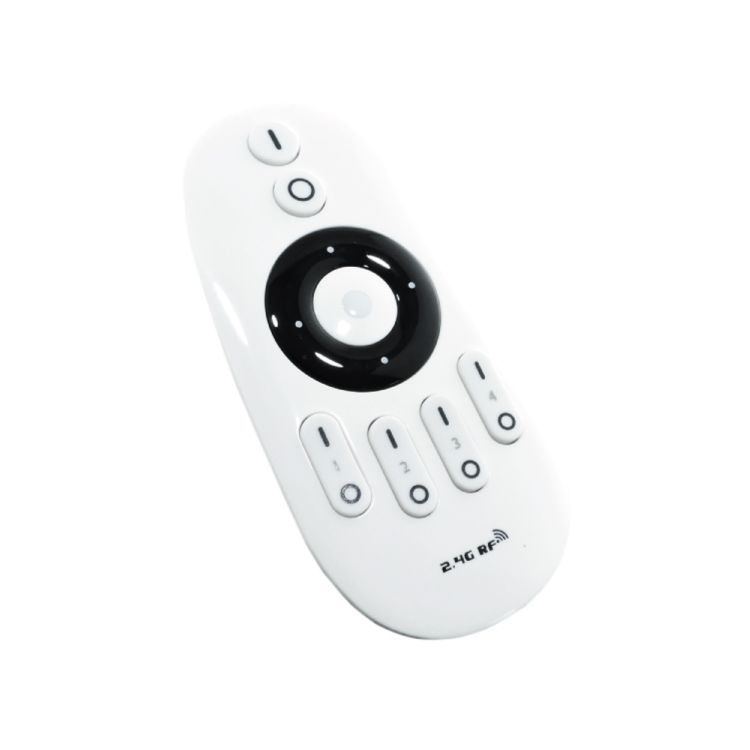

WiFi Dual White Remote Control, compatible with con-50 and con-54

The four-zone Mi-Light LED RF remote control allows the individual control of each zone using a compatible receiver. The multifunctional remote allows you to change the brightness and color temperature of dual white (warm white - cool white) led lights and up to four different zones with the available buttons. This transmitter is compatible with the?Mi-Light?series WiFi Dimmer Controller.

?

How does it work?

1. To dim all dual white lights at once or change the color temperature, first press ?Master ON?. To do this with individual lights, first press ?Zone ON?.

2. Set the adjustments for color temperature or brightness.

3. To turn on the night light mode of a single (dual white) light, press and hold ?Zone OFF? from one of the four zones. To turn on all the lights in night mode, press and hold ?Master ON?.

?

How can I link and Un-link the lights?

1. Choose which zone you want to assign the light (1 to 4)

2. Switch off the main power supply of the light in the selected zone with the main switch or pull the plug from the socket.

3. Now switch on the light again within 3 seconds shortly press one of the ?Zone ON? buttons one time on the remote control.

4. When the link process is successful, the light blinks slowly three times on and off.

Note:

• Please refer to our User Manual for further instructions or contact our FREE tech support team
• This dual white control remote operates with 2 AAA batteries (NOT INCLUDED).
