18 AWG White Cable for Single Color LED Lights, 1mm, 48V Máx, x 100m
SKU cab-06nr-bl-100m-a2
$109.99
New Arrival
In stock
18 AWG White Cable for Single Color LED Lights, 1mm, 48V Máx, x 100m
Product Details

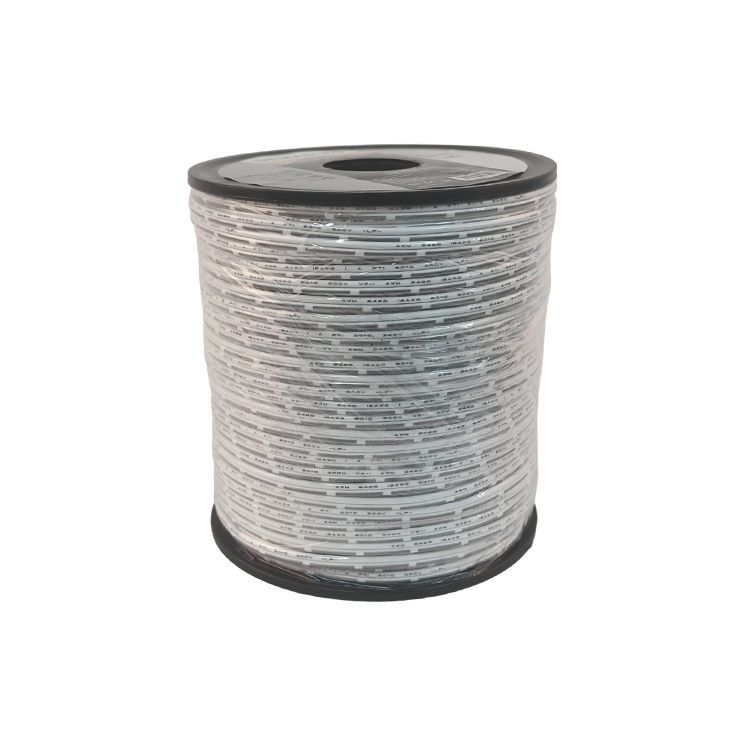

18 AWG White Cable for Single Color LED Lights
This product is specially designed to extend any Single Color LED Lighting system. It is a 18 AWG gauge (1.024mm | 0.040in) made up of 2 Wires distinguished by color to make the connection easier.
Highlights:
Easy to use: It's easy to strip, cut, and bent.
Safety: The PVC insulation is distributed evenly, which could prevent electric shocks by hot spots better than others.
Premium quality: The conductor wires are made of tinned copper and the insulation is made of PVC, which makes it flexible and damp-roof
Applications: This cable is ideal for strip extensions, high brightness LED connections and dichroic connections, among others.
Note:
This item DOES NOT include any connectors, jacks, or any other interface.
The Listed Prices by length:
| 1 pc. | 3.28ft | 1m |
| 2 pcs. | 6.56ft | 2m |
| 3 pcs. | 9.84ft | 3m |
| 4 pcs. | 13.12ft | 4m |
| 5 pcs. | 16.40ft | 5m |
| 10 pcs. | 32.80ft | 10m |
| 15 pcs. | 49.21ft | 15m |
| 20 pcs. | 65.61ft | 20m |
| 25 pcs. | 82.02ft | 25m, and so on |
Technical Specifications
|
Max. Current |
5 A |
|
Input Voltage |
3-48 Vdc |
|
Wire Gauge |
18 AWG |
|
Length |
328,1 ft |
|
Diameter |
0.04 in |
|
Cross Sectional Area |
0.0324 in² |
|
Maximum Temperature Threshold |
175 °F |
|
OD Tolerance |
±0.2 |
|
Material |
PVC |
|
Flexible? |
Yes |
|
Installment |
Surface / Flush Mounted |
|
Conductor |
Copper with tin-plated |
|
Cable Color |
Black and White |
|
Use |
Indoor |
|
Safety Standard |
CE |
